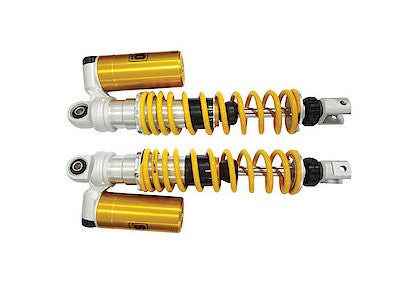

YA740 - OHLINS Yamaha X-MAX 250 / 300 (17/22) Rear Shock Absorber (STX 36 )

Rear shock absorber by Ohlins for Yamaha X-MAX 250 / 300.

Developed for bikes with twin shock absorbers, the Ohlins STX 36 is a classic monotube design, featuring all the classical Ohlins qualities delivering top notch performance for your street bike. Available in emulsion, piggyback or hose versions, depending on application, it can also be specified with a number of different damping adjustment options with or without length adjustment. Suitable for any application from cruisers to café racers, the STX 36 shocks are one of Ohlins most successful designs of all times.

📜 Owner's manual

🛠 Instructions for installation

Length:	347 mm
Stroke:	99 mm
Rate N/mm:	12-13/13-14 N/mm
Position:	rear
Mounted spring:	66381-02/-03
Spring series:	66381
Packaging unit:	pair

Type Code: S36PR1C1

S: Single tube

36: Piston diameter: 36 mm

P: Monotube high pressure gas type of shock absorber with external “piggy back”reservoir

R1: Adjustable rebound damping on single tube shocks / adjuster wheel above the end eye.

APPLICATION:

Yamaha X-MAX 250 (2017 – 2022)

Yamaha X-MAX 300 (2017 – 2022)
