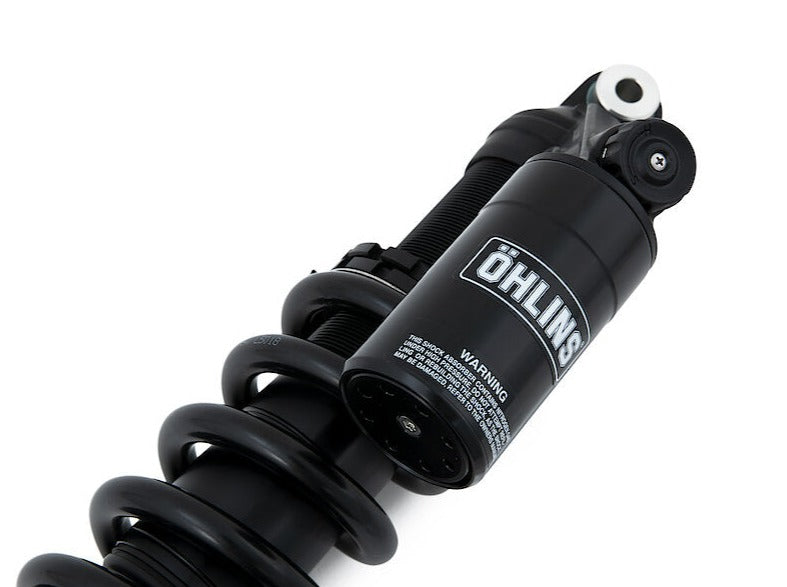

YA588 - OHLINS Yamaha MT-09 / Tracer 900 / XSR900 (14/21) Rear Shock Absorber (black)

STX 46 Blackline street rear shock absorber by Ohlins for Yamaha MT-09 / Tracer 900 / XSR900.

Ohlins well proven STX 46 Street series is the perfect upgrade for sportive street bikes.

This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston.

Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.

📜 Owner's manual

🛠 Instructions for installation

Length:	329 mm
Stroke:	65 mm
Rate N/mm:	95 N/mm
Position:	rear
Mounted spring:	21102-31
Packaging unit:	pieces

Type Code: S46HR1C1S

S: Single tube

46: Piston diameter: 46 mm

H: Monotube high pressure gas type of shock absorber with hose mounted external reservoir.

R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.

.

S: Hose mounted hydraulic spring preload adjuster.

APPLICATION:

Yamaha MT-09 (2014 – 2020)

Yamaha TRACER 900 (2015 – 2017)

Yamaha XSR900 (2016 – 2021)
