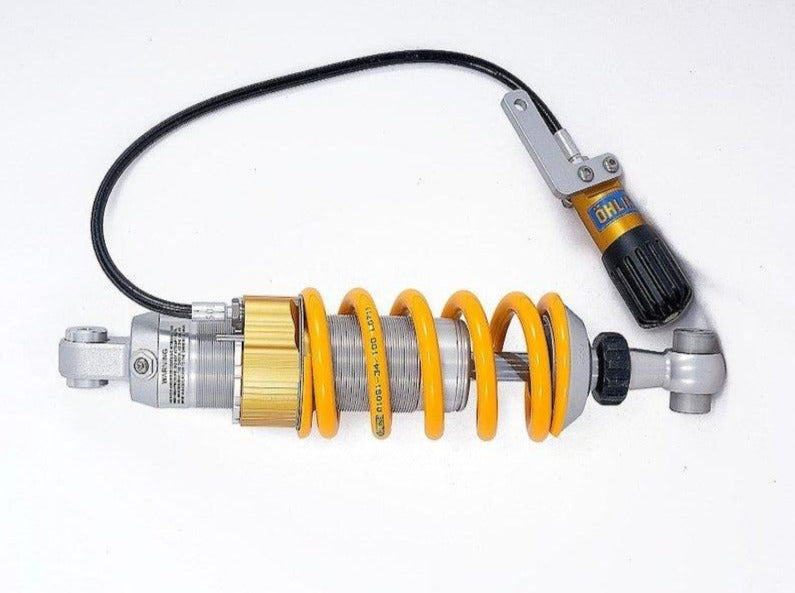

YA534 - OHLINS Yamaha MT-09 / Tracer 900 / XSR900 Rear Shock Absorber

Rear shock absorber by Ohlins for Yamaha MT-09 / Tracer 900 / XSR900.

Ohlins well proven STX 46 Street series is the perfect upgrade for sportive street bikes.

This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston.

Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.

Type code: S46DR1S

📜 Owner's manual

🛠 Instructions for installation

S: Single tube

46: Piston diameter: 46 mm

D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body.

R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

S: Hose mounted hydraulic spring preload adjuster.

APPLICATION:

Yamaha MT-09 / FZ-09 (2014 – 2020)

Yamaha TRACER 900 (2015 – 2017)

Yamaha XSR900 (2016 – 2021)
