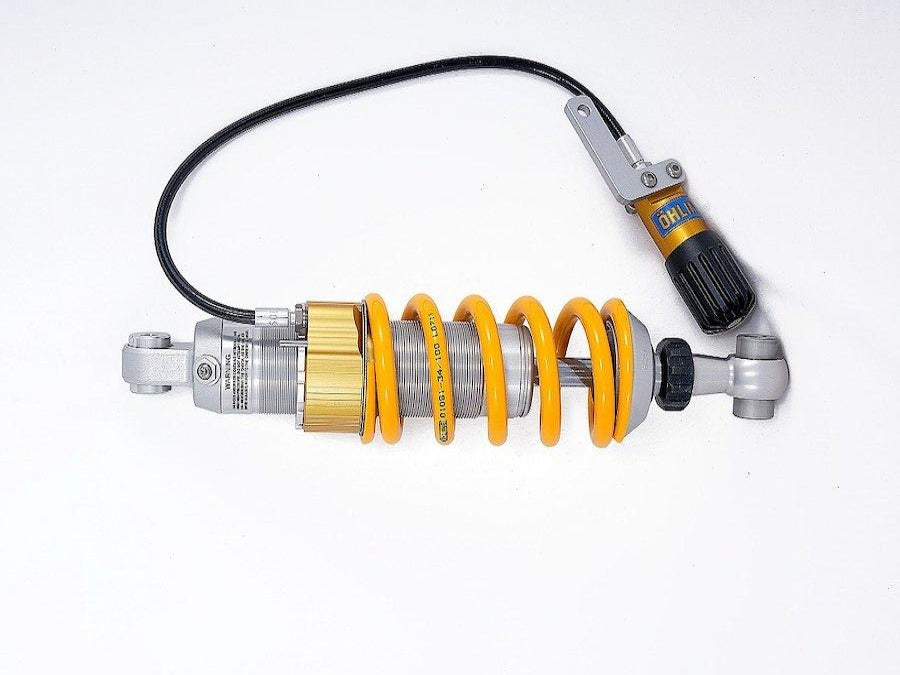

YA429 - OHLINS Yamaha Tracer 700 Rear Shock Absorber

Rear shock absorber by Ohlins for Yamaha Tracer 700.

The STX 46 Street is based on the popular 46 mm shock absorber with divided piston and adjustable rebound damping, developed for naked sports bikes and street performance bikes. It features a large 46 mm main piston and an internal gas reservoir within the main body of the shock.

With adjustable damping you can change the behavior of the shock to suit your taste and even fit a hydraulic spring pre loader to change the stance of the bike.

📜 Owner's manual

🛠 Instructions for installation

Type Code: S46DR1S

S: Single tube

46: Piston diameter: 46 mm

D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body.

R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

S: Hose mounted hydraulic spring preload adjuster.

APPLICATION:

Yamaha TRACER 700 (2016 – )

Yamaha TRACER 7 (2021 – )
