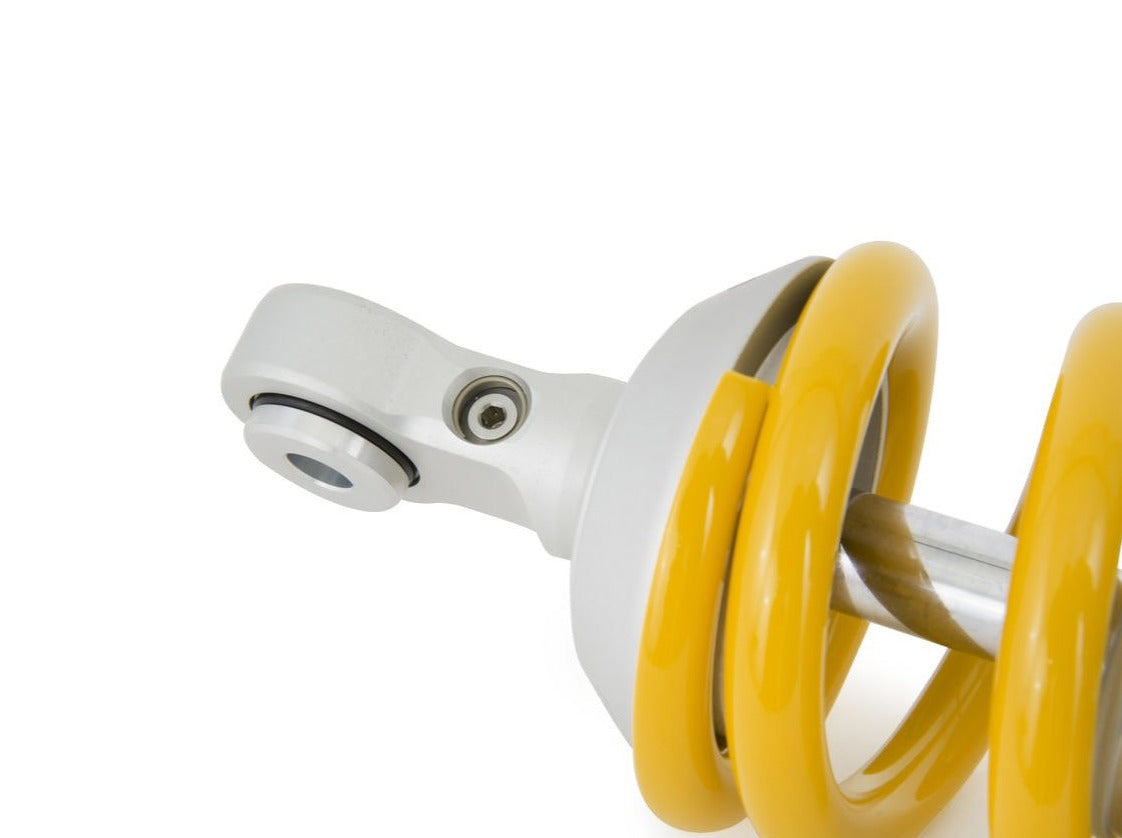

YA051 - OHLINS Yamaha RD350 (79/82) Shock Absorber (STX 46 Street)

Front fork springs road & track by Ohlins for Yamaha RD350.

Ohlins well proven STX 46 Street series is the perfect upgrade for sportive street bikes. This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston. Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.

📜 Owner's manual

🛠 Instructions for installation

Length:	315 mm
Stroke:	61 mm
Rate N/mm:	85 N/mm
Mounted spring:	01091-26

Type Code: S46DR1

S: Single tube

46: Piston diameter: 46 mm

D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body.

R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye

APPLICATION:

Yamaha RD350 (1979 – 1982)
