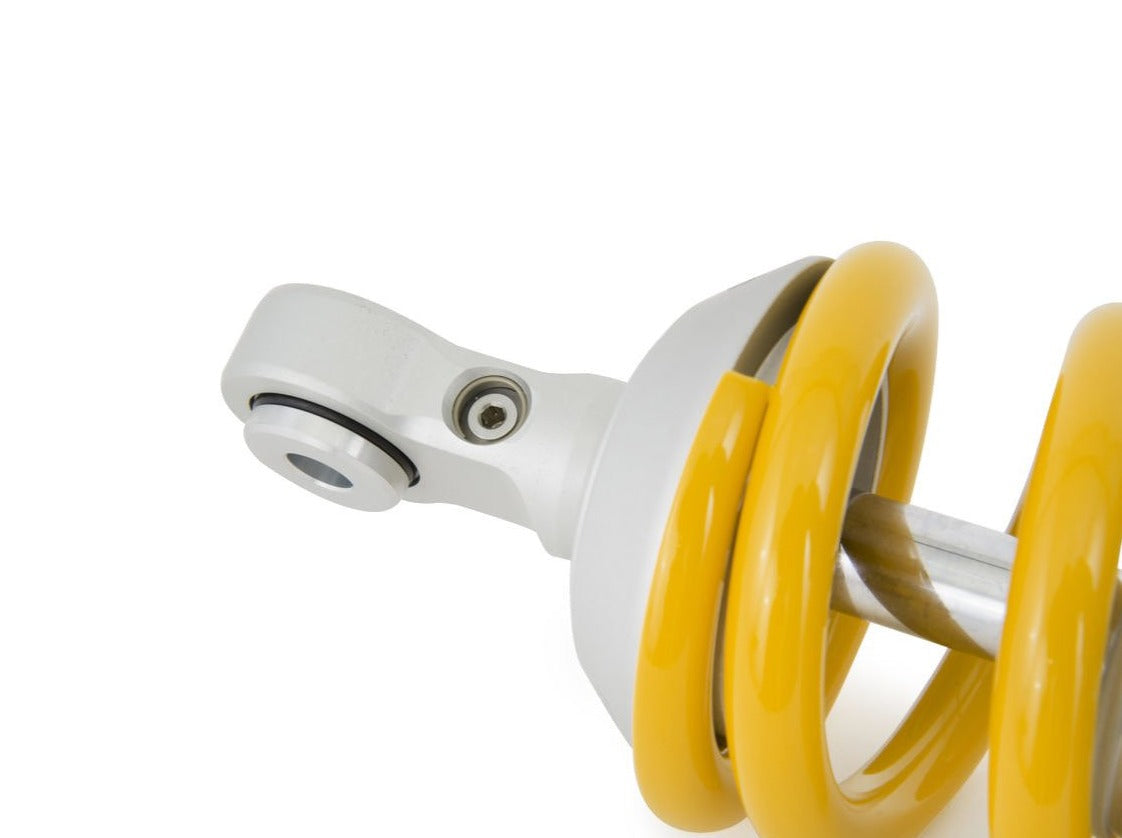

YA009 - OHLINS Yamaha FZ1 / FZ8 Fazer Rear Shock Absorber

Rear shock absorber by Ohlins for Yamaha FZ1 / FZ8 Fazer.

Ohlins well proven STX 46 Street series is the perfect upgrade for sportive street bikes.

This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston.

Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.

📜 Owner's manual

🛠 Instructions for installation

Type Code: S46DR1

S: Single tube

46: Piston diameter: 46 mm

D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body.

R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye .

APPLICATION:

Yamaha FZ1 Fazer (2006 – 2015)

Yamaha FZ8 Fazer (2010 – 2015)
