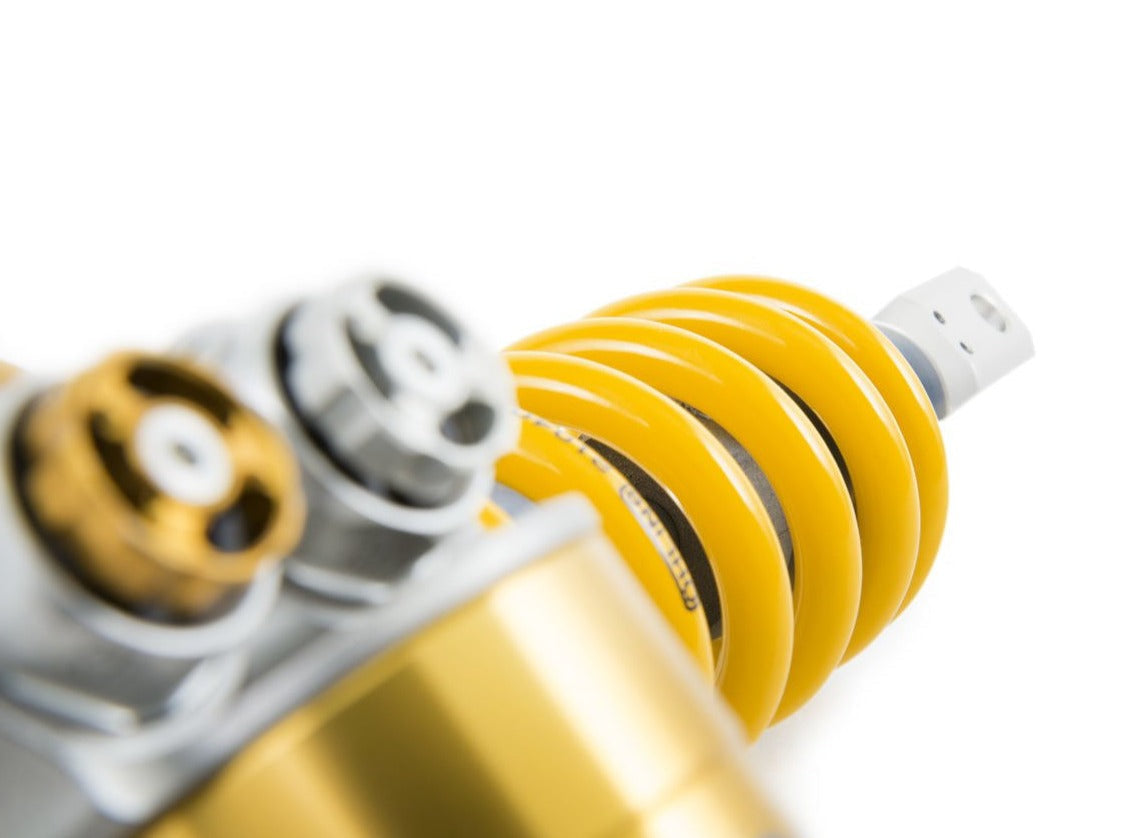

SU469 - OHLINS Suzuki GSX-R600 / GSX-R750 (11/18) Rear Shock Absorber

Rear shock absorber by Ohlins for Suzuki GSX-R600 / GSX-R750.

The TTX Road & Track is developed for the latest supersport models as a complement to the top of the line TTX GP shock. The TTX RT has a competitive price but still offers great performance for the road and track day enthusiast. The shock is based on the TTX 36 with its race proven technology. It has a traditional C-spanner type pre load adjustment, easily accessible rebound and compression adjustment on the cylinder head. The result is a shock absorber with the long term technology developments from Ohlins experience in MotoGP and WSBK.

📜 Owner's manual

🛠 Instructions for installation

Type Code: T36PR1C1LB

T: Twin tube

36: Piston diameter: 36 mm

P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

R1: Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.

C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.

L: Adjustable length.

B: Integrated hydraulic spring preload adjuster. Adjuster wheel or hexagon on the adjuster.

APPLICATION:

Suzuki GSX-R600 (2011 – 2018)

Suzuki GSX-R750 (2011 – 2018)
