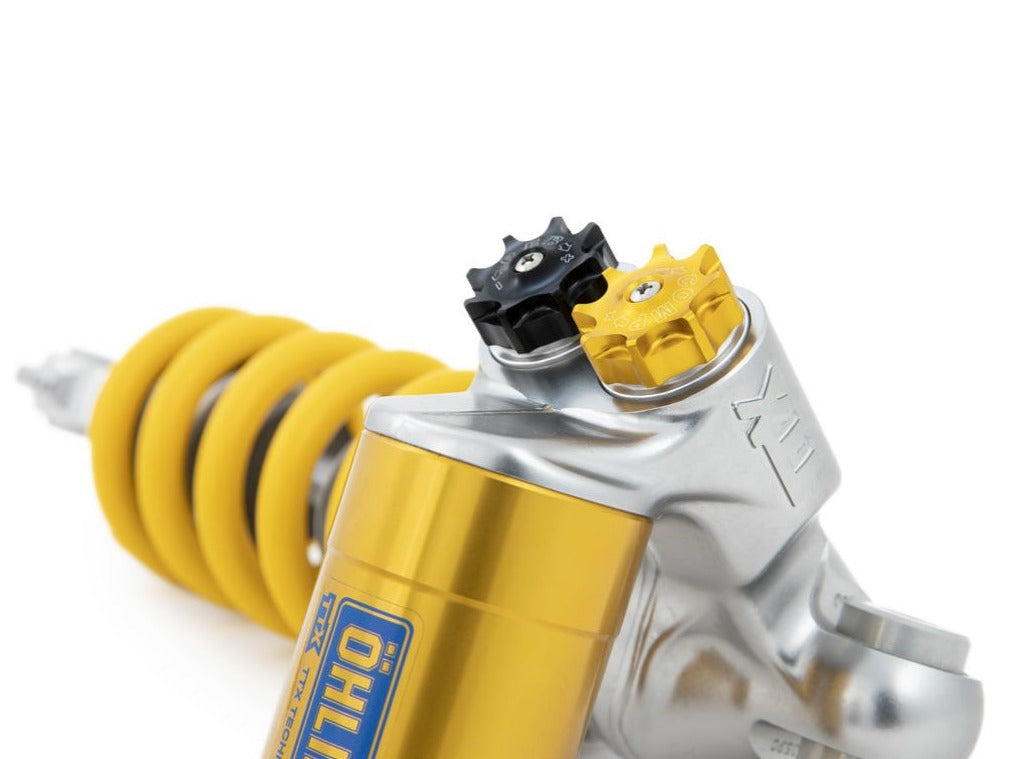

SU026 - OHLINS Suzuki GSX1300R Hayabusa (08/12) Rear Shock Absorber

Rear shock absorber by Ohlins for Suzuki GSX1300R Hayabusa.

The TTX Road & Track is developed for the latest supersport models as a complement to the top of the line TTX GP shock. It has a competitive price but still offers great performance for the road and track day enthusiast.

The shock is based on the TTX 36 with its race proven technology. It has a traditional C-spanner type pre load adjustment, easily accessible rebound and compression adjustment on the cylinder head.

The result is a shock absorber with the long term technology developments from Ohlins experience in MotoGP and WSBK.

📜 Owner's manual

🛠 Instructions for installation

Type Code: T36PR1C1LS

T: Twin tube

36: Piston diameter: 36 mm

P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

R1: Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.

C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.

L: Adjustable length.

S: Hose mounted hydraulic spring preload adjuster.

APPLICATION:
