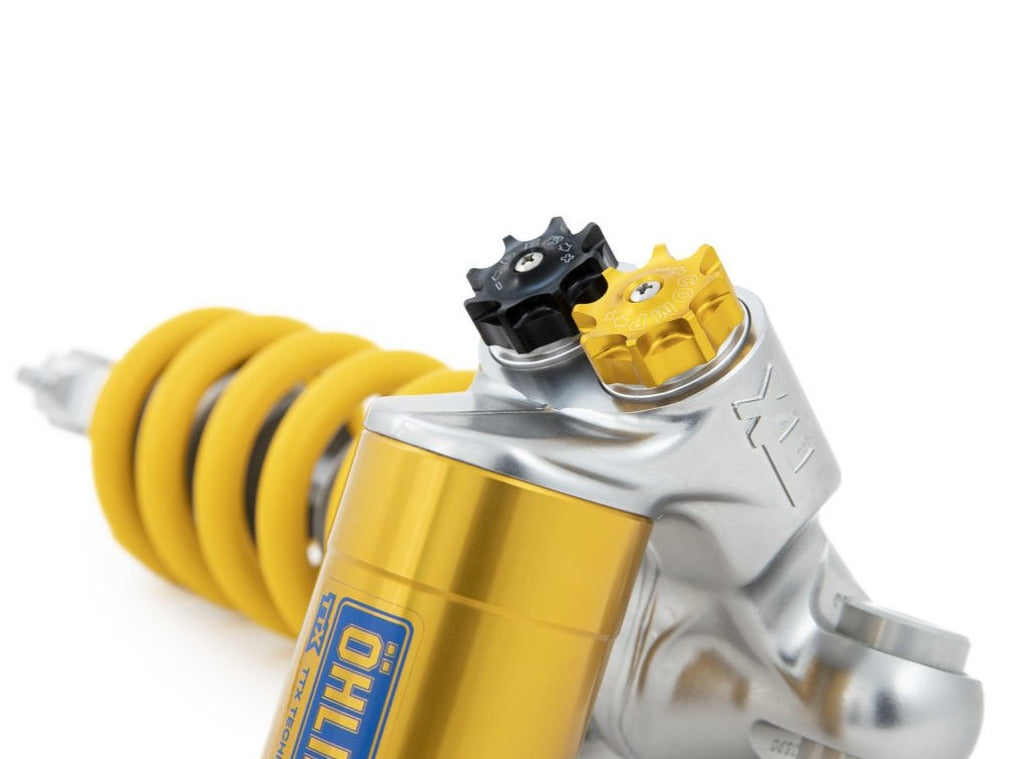

KT302 - OHLINS KTM 1290 Super Duke R (14/19) Rear Shock Absorber

Rear shock absorber by Ohlins for KTM 1290 Super Duke R.

The TTX Road & Track is developed for the latest supersport models as a complement to the top of the line TTX GP shock. The TTX RT has a competitive price but still offers great performance for the road and track day enthusiast. The shock is based on the TTX 36 with its race proven technology. It has a traditional C-spanner type pre load adjustment, easily accessible rebound and compression adjustment on the cylinder head. The result is a shock absorber with the long term technology developments from Ohlins experience in MotoGP and WSBK.

📜 Owner's manual

🛠 Instructions for installation

Type Code: T39PR1C1B

T: Twin tube

39: Piston diameter: 39 mm

P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

R1: Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.

C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.

B: Integrated hydraulic spring preload adjuster. Adjuster wheel or hexagon on the adjuster.

APPLICATION:

KTM 1290 Super Duke R (2014 – 2019)
