KA468 - OHLINS Kawasaki ZX-10R (2016 – ) Rear Shock Absorber
KA468 - OHLINS Kawasaki ZX-10R (2016 – ) Rear Shock Absorber
Couldn't load pickup availability

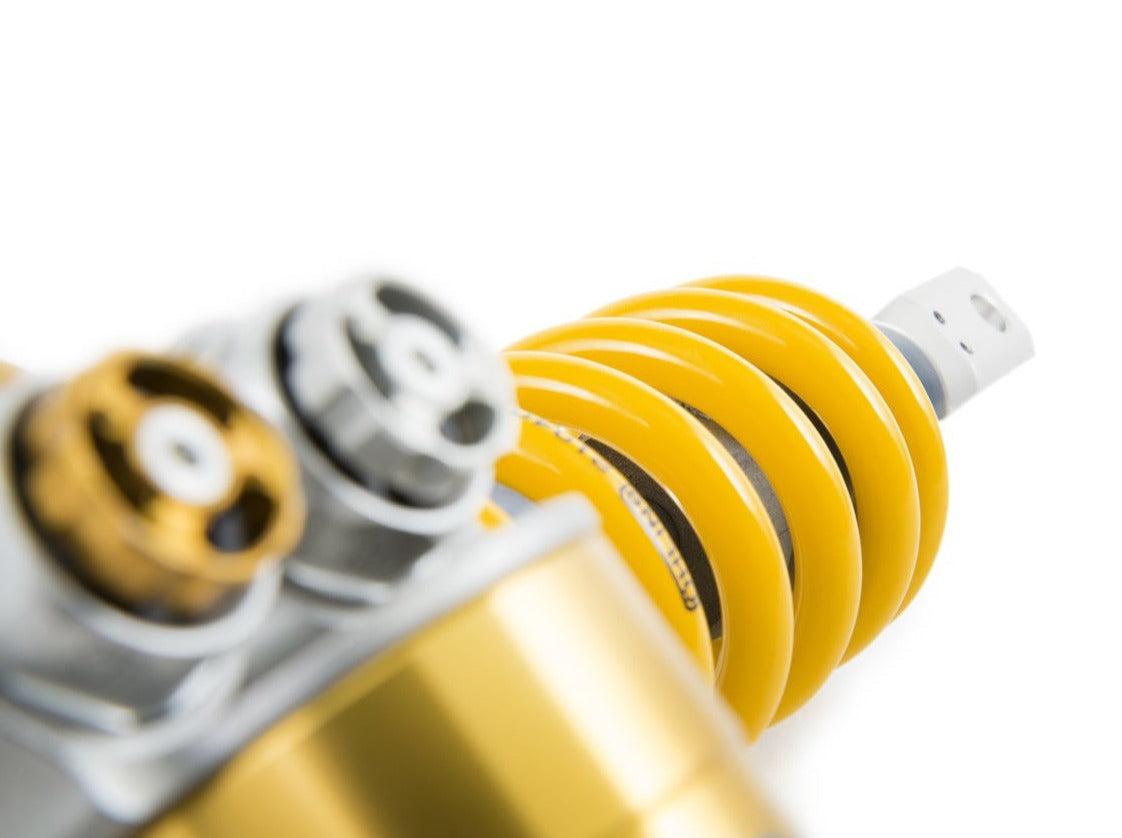

Rear shock absorber by Ohlins for Kawasaki ZX-10R.
Ohlins are continuously striving to improve their products on quality, consistency, and performance. From our latest research and development, we have made many components and setting improvements that we have combined into this shock. The TTX GP features a new type of valve which gives better feedback to the rider, also a new piston and band which together with the new valves enhances grip, stability, feedback, and consistency. The new adjuster knobs make it easier to make changes on the fly with or without tools compared to the old design.
🛠 Instructions for installation
| Length: | 311mm +2/-4 mm |
|---|---|
| Stroke: | 57 mm |
| Rate N/mm: | 95 N/mm |
| Position: | rear |
| Mounted spring: | 21041-31 |
Type Code: T36PR1C1LS
T: Twin tube
36: Piston diameter: 36 mm
P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.
C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.
L: Adjustable length.
S: Hose mounted hydraulic spring preload adjuster.APPLICATION:
Kawasaki ZX-10R (2016 – )
