KA203 - OHLINS Kawasaki GPZ900 Racing (99/00) Rear Shock Absorber (STX 46 Supersport)

KA203 - OHLINS Kawasaki GPZ900 Racing (99/00) Rear Shock Absorber (STX 46 Supersport)

Regular price €1.249,00 EUR
Regular price Sale price €1.249,00 EUR
Sale Sold out
Shipping calculated at checkout.

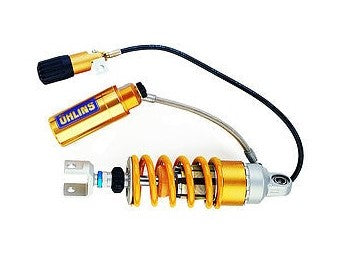

Ohlins logo: OHLINS Advanced Performance TechnologySTX 46 Supersport shock absorber by Ohlins for Kawasaki GPZ900 Racing.

The STX 46 is based on our popular 46 mm shock absorber with divided piston and adjustable rebound damping, developed for naked sports bikes and street performance bikes. It features a large 46 mm main piston and an internal gas reservoir within the main body of the shock.

With adjustable damping you can change the behavior of the shock to suit your taste and even fit a hydraulic spring pre loader to change the stance of the bike. This is the perfect choice for the naked sports bike, or as well call it: Street Performance Line.

📜 Owner's manual

🛠 Instructions for installation

Length: 330 +10/-2 mm
Stroke: 67,5 mm
Rate N/mm: 90 N/mm
Position: rear
Mounted spring: 01091-29
Packaging unit: pieces


Type Code: S46HR1C1LS

Single tube S: Single tube

Piston diameter 46: Piston diameter: 46 mm

Ohlins Motorcycle type H H: Monotube high pressure gas type of shock absorber with hose mounted external reservoir.

Ohlins Motorcycle R1 rebound damping adjuster R1:

Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

Ohlins Motorcycle S36C1 compression damping adjuster C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.


Ohlins Motorcycle L L: Adjustable length.



Ohlins Motorcycle S S: Hose mounted hydraulic spring preload adjuster.

Notes:
17 inch rear wheel.


APPLICATION:


Kawasaki GPZ900 Racing (1999 – 2000)
