KA110 - OHLINS Kawasaki Ninja 1000 / Z1000SX Rear Shock Absorber
KA110 - OHLINS Kawasaki Ninja 1000 / Z1000SX Rear Shock Absorber
Regular price
€925,00 EUR
Regular price
Sale price
€925,00 EUR
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

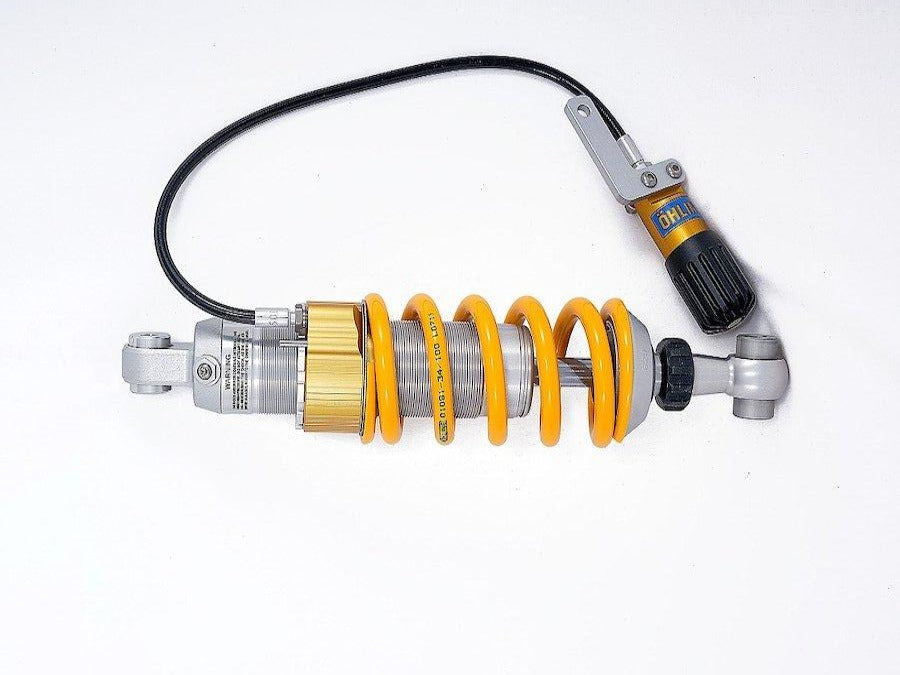

Rear shock absorber by Ohlins for Kawasaki Ninja 1000 / Z1000SX.
Ohlins well proven STX 46 Street series is the perfect upgrade for sportive street bikes. This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston. Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.
🛠 Instructions for installation
| Length: | 356 mm |
|---|---|
| Stroke: | 61 mm |
| Rate N/mm: | 100 N/mm |
| Position: | rear |
| Mounted spring: | 01091-34 |
Type Code: S46DR1S
S: Single tube
46: Piston diameter: 46 mm
D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body.
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
S: Hose mounted hydraulic spring preload adjusterAPPLICATION:
Kawasaki NINJA 1000 / Z1000SX (2011 – 2019)
