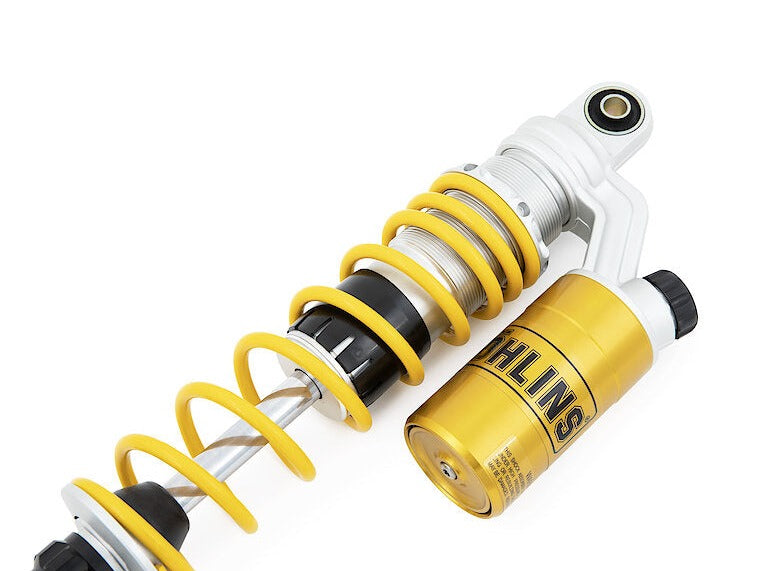

HO819 - OHLINS Honda Monkey MSZ 125 (18/22) Scooter Shock Absorber

STX 36 Scooter shock absorber by Ohlins for Honda Monkey MSZ 125.

Developed for bikes with scooter shock absorbers, the Ohlins STX 36 is a classic monotube design, featuring all the classical Ohlins qualities delivering top notch performance for your street bike. Available in emulsion, piggyback or hose versions, depending on application, it can also be specified with a number of different damping adjustment options with or without length adjustment. Suitable for any application from cruisers to café racers, the STX 36 shocks are one of Ohlins most successful designs of all times.

📜 Owner's manual

🛠 Instructions for installation

Length:	334 +9/-1 mm
Stroke:	93 mm
Rate N/mm:	prog. 11-15 N/mm
Position:	rear
Mounted spring:	60360-01
Spring series:	60360-xx
Packaging unit:	pair

Type Code: S36PR1C1L

S: Single tube

36: Piston diameter: 36 mm

P: Monotube high pressure gas type of shock absorber with external “piggy back”reservoir

R1: Adjustable rebound damping on single tube shocks / adjuster wheel above the end eye

C1: Adjustable compression damping / adjuster wheel or slot on the reservoir

L: Adjustable length

Notes:

1 set of shock absorbers (left and right) with yellow springs. Additional you will find a set of stiffer springs 60360-02 (12-19N/mm) as an option for rider's over 80kg (including riding gear) in the box.

APPLICATION:

Honda Monkey MSZ 125 (2018 – 2022)
