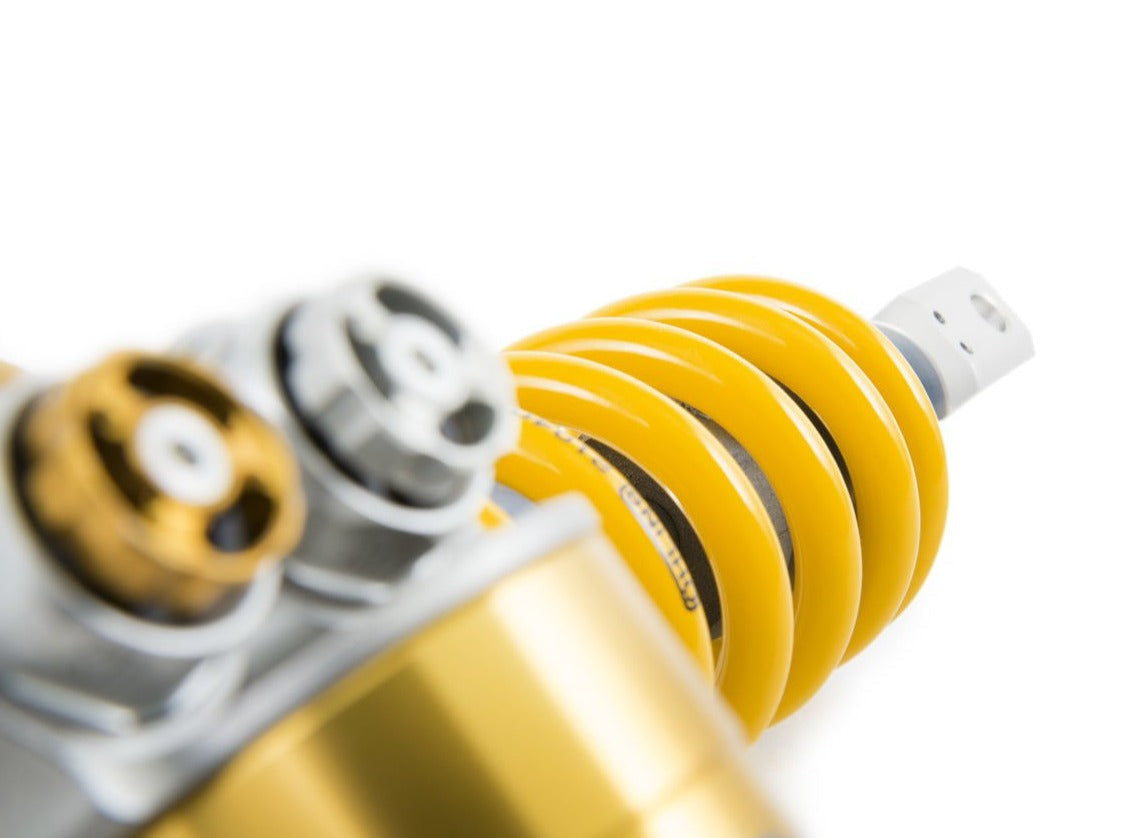

HO568 - OHLINS Honda CBR1000RR-R / SP (2020+) Rear Shock Absorber (TTX GP)
HO568 - OHLINS Honda CBR1000RR-R / SP (2020+) Rear Shock Absorber (TTX GP)
Couldn't load pickup availability
Rear shock absorber by Ohlins for Honda CBR1000RR-R / SP.
Based on your bike’s performance, its price and available mounting space we have designed a shock that we think suits it, both when it comes to price and performance. We start by choosing a type which we tailor-make for your specific bike. The basic setup, the design of the shim stacks and the calibration of the adjusters, is tested both on road and track. They are the results of true tests with your bike and no guesswork! Ohlins manufactures more than 300 different shock absorber models, each model is tailor-made for one specific bike. The concept of all Ohlins products is not a secret, it is precision. Precision provides superior control of the damping force and the key to our success.
🛠 Instructions for installation
| Length: | 317mm +4/-2mm mm |
|---|---|
| Stroke: | 60 mm |
| Rate N/mm: | 110 N/mm |
| Position: | rear |
| Mounted spring: | 21040-39 |
| Spring series: | 21040-xx |
| Packaging unit: | pieces |
Type Code: T36PR1C1LB
T: Twin tube
36: Piston diameter: 36 mm
P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.
R1: Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.
C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.
L: Adjustable length.
B: Integrated hydraulic spring preload adjuster. Adjuster wheel or hexagon on the adjuster.APPLICATION:
Honda CBR1000RR-R (2020 – )Honda CBR1000RR-R SP (2020 – )
(Electronic controlled suspension will be without function)
