HO469 - OHLINS Honda CBR600RR (17/18) Rear Shock Absorber (without ABS)
HO469 - OHLINS Honda CBR600RR (17/18) Rear Shock Absorber (without ABS)
Couldn't load pickup availability

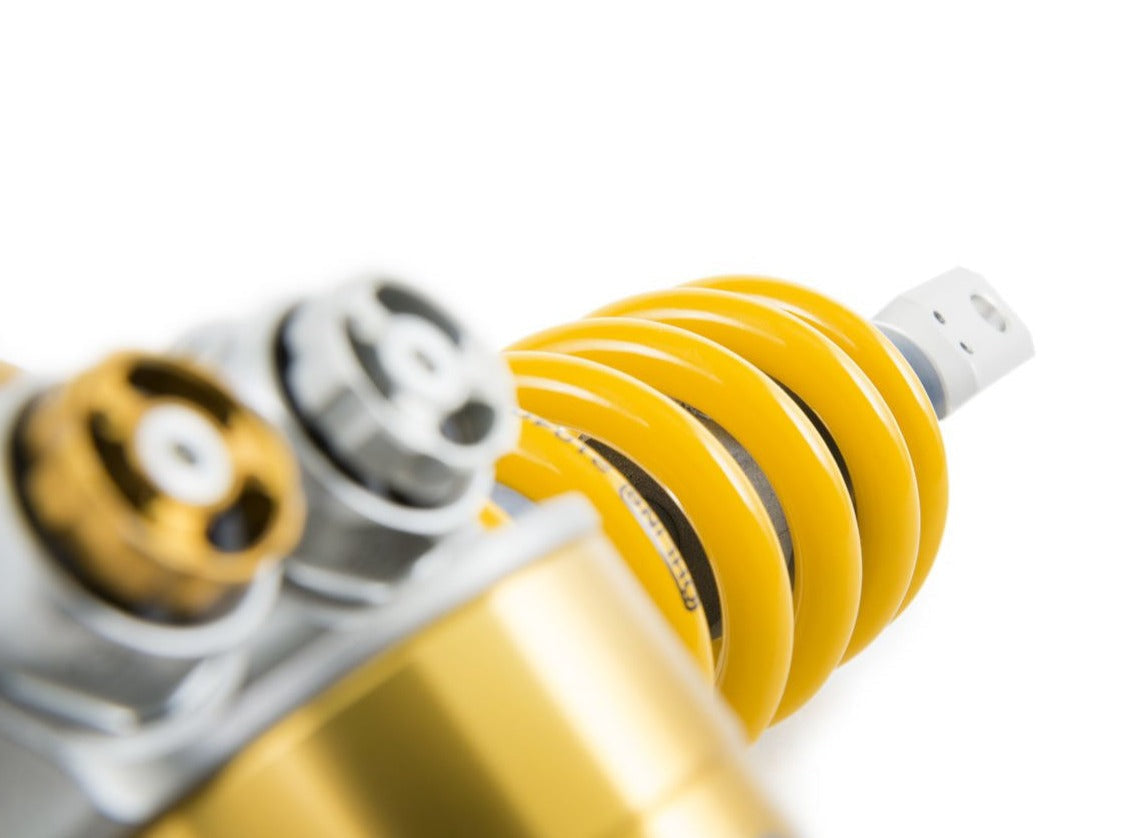

Rear shock absorber by Ohlins for Honda CBR600RR (without ABS).
Based on your bike’s performance, its price and available mounting space we have designed a shock that we think suits it, both when it comes to price and performance.
We start by choosing a type which we tailor-make for your specific bike. The basic setup, the design of the shim stacks and the calibration of the adjusters, is tested both on road and track. They are the results of true tests with your bike and no guesswork!
Ohlins manufactures more than 300 different shock absorber models, each model is tailor-made for one specific bike. The concept of all Ohlins products is not a secret, it is precision. Precision provides superior control of the damping force and the key to our success.
🛠 Instructions for installation
| Length: | 295 +6/-0 mm |
|---|---|
| Stroke: | 60 mm |
| Rate N/mm: | 95 N/mm |
| Position: | rear |
| Mounted spring: | 21040-31 |
Type Code: T36PR1C1LS
T: Twin tube
36: Piston diameter: 36 mm
P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.
R1: Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.
C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.
L: Adjustable length.
S: Hose mounted hydraulic spring preload adjuster.APPLICATION:
Honda CBR600RR (2017 – 2018)
