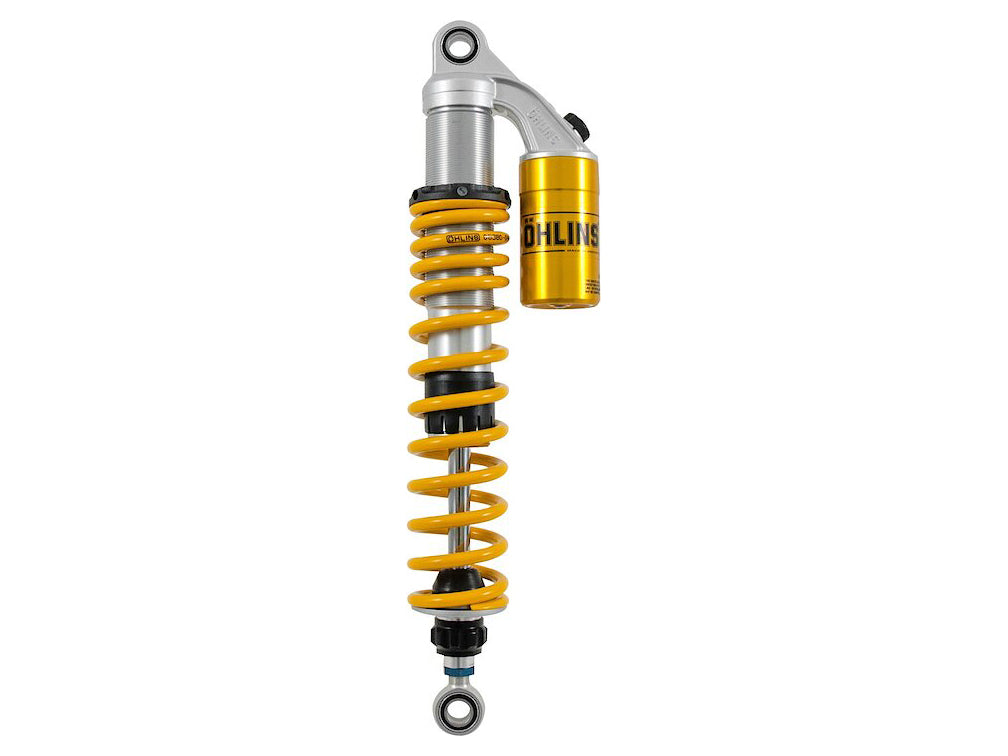

HO018 - OHLINS Honda Forza 350 (20/22) Scooter Shock Absorber

STX 36 Scooter shock absorber by Ohlins for Honda Forza 350.

Developed for bikes with scooter shock absorbers, the Ohlins STX 36 is a classic monotube design, featuring all the classical Ohlins qualities delivering top notch performance for your street bike. Available in emulsion, piggyback or hose versions, depending on application, it can also be specified with a number of different damping adjustment options with or without length adjustment. Suitable for any application from cruisers to café racers, the STX 36 shocks are one of Ohlins most successful designs of all times.

📜 Owner's manual

🛠 Instructions for installation

Length:	430 mm
Stroke:	119 mm
Rate N/mm:	11-18 progr. N/mm
Position:	rear
Mounted spring:	66396-01
Packaging unit:	pair

Type Code: S36PR1C1

S: Single tube

36: Piston diameter: 36 mm

P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir

R1: Adjustable rebound damping on single tube shocks / adjuster wheel above the end eye

APPLICATION:

Honda Forza 350 (2020 – 2022)

Honda Forza 300 (2018 – 2019)
