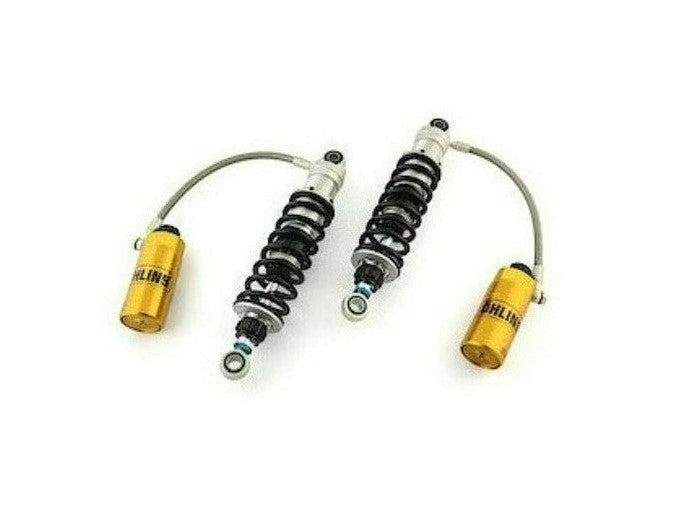

HD357 - OHLINS Harley-Davidson STX 36 Twin Shock Absorber (337 mm / black springs)

STX 36 Twin shock absorber by Ohlins for Harley-Davidson models.

Developed for bikes with twin shock absorbers, the Ohlins STX 36 is a classic monotube design, featuring all the classical Ohlins qualities delivering top-notch performance for your street bike. Available in emulsion, piggyback or hose versions, depending on application, it can also be specified with a number of different damping adjustment options with or without length adjustment. Suitable for any application from cruisers to café racers, the STX 36 shocks are one of Ohlins most successful designs of all times.

📜 Owner's manual

🛠 Instructions for installation

Length:	337,5 +0/-10 mm
Stroke:	90,5 mm
Rate N/mm:	25 N/mm
Position:	rear
Mounted spring:	00281-68
Packaging unit:	pair

Type Code: S36HR1C1L

S: Single tube

36: Piston diameter: 36 mm

H: Monotube high pressure gas type of shock absorber with hose mounted external reservoir

R1: Adjustable rebound damping on single tube shocks / adjuster wheel above the end eye

C1: Adjustable compression damping / adjuster wheel or slot on the reservoir

L: Adjustable length

APPLICATION:

Harley-Davidson Electra Glide Classic FI FLHTCI (FL1) (2001 – 2006)

Harley-Davidson Electra Glide Classic FLHTC (FL1) (2000 – 2006)

Harley-Davidson Electra Glide Classic FLHTC (FL2) (2007 – 2013)

Harley-Davidson Electra Glide FLHT (FL1) (1999 – 2006)

Harley-Davidson Electra Glide FLHT (FL2) (2007 – 2013)

Harley-Davidson Electra Glide FLHT (FLT) (1990 – 1998)

Harley-Davidson Road Glide Custom FLTRX (FL2) (2011 – 2013)

Harley-Davidson Road Glide FLTR (FL1) (1999 – 2006)

Harley-Davidson Road Glide FLTRI (FL1) (2004 – 2006)

Harley-Davidson Road Glide Ultra FLTRU (FL2) (2011 – 2014)

Harley-Davidson Road King Classic FLHRC (FL1) (1999 – 2006)

Harley-Davidson Road King Classic FLHRC (FL2) (2007 – 2013)

Harley-Davidson Road King Classic FLHRC (FLT) (1997 – 1999)

Harley-Davidson Road King Classic FLHRCI (FL1) (1999 – 2006)

Harley-Davidson Road King CVO FLHRSE (FL2) (2012 – 2013)

Harley-Davidson Road King FLHR (FL1) (1999 – 2006)

Harley-Davidson Road King FLHR (FL2) (2007 – 2013)

Harley-Davidson Road King FLHR (FLT) (1994 – 1999)

Harley-Davidson Ultra Glide Classic FI FLHTCUI (FL1) (1999 – 2006)

Harley-Davidson Ultra Glide Classic FLHTCU (FL1) (1999 – 2007)

Harley-Davidson Ultra Glide Classic FLHTCU (FL2) (2008 – 2013)
