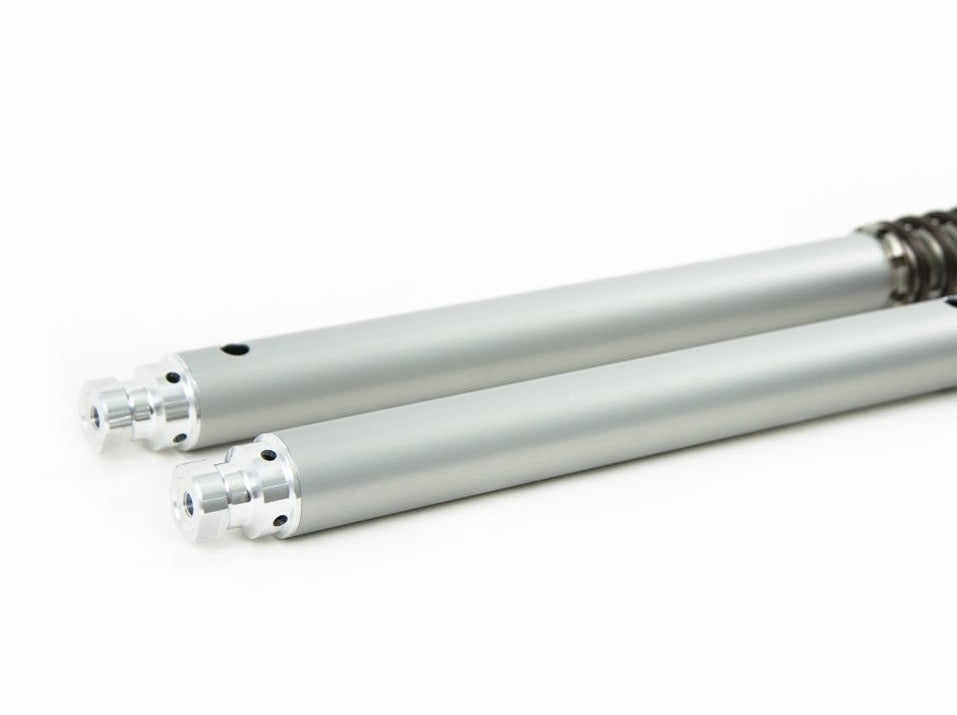

FKA112 - OHLINS Triumph Scrambler 1200 XC (19/22) Front Fork Cartridge Kit

Front Fork cartridge kit by Ohlins for Triumph Scrambler 1200 XC.

Based on the well proven NIX technology from our Road & Track product line, Ohlins developed the FKA cartridge kits for Adventure Bikes improving these in terms of comfort and overall performance.

Thanks to the FKA cartridge kits from Ohlins the bike now has a fully adjustable front end. Rebound damping is on one leg and compression in the other leg, with adjustable spring preload in both legs. Different springs are available for riders individual demands as well as an effective hydraulic stop inside the kit to prevent bottoming.

Front fork springs and oil need to be ordered separately. Spring rate recommendations can be found in the mounting instruction.

Type code: NIX30A

📜 Owner's manual

🛠 Instructions for installation

• Length: 835 mm
• Stroke: 200 mm
• Position: front
• Spring series: 08434-series
• Recommended oil: 01309-01
• Oil level mm: 105
• Packaging unit: pair

Notes:
We recommended to contact an authorized OHLINS dealer or Service Center for installation.

APPLICATION:

Triumph Scrambler 1200 XC (2019 – 2022)
