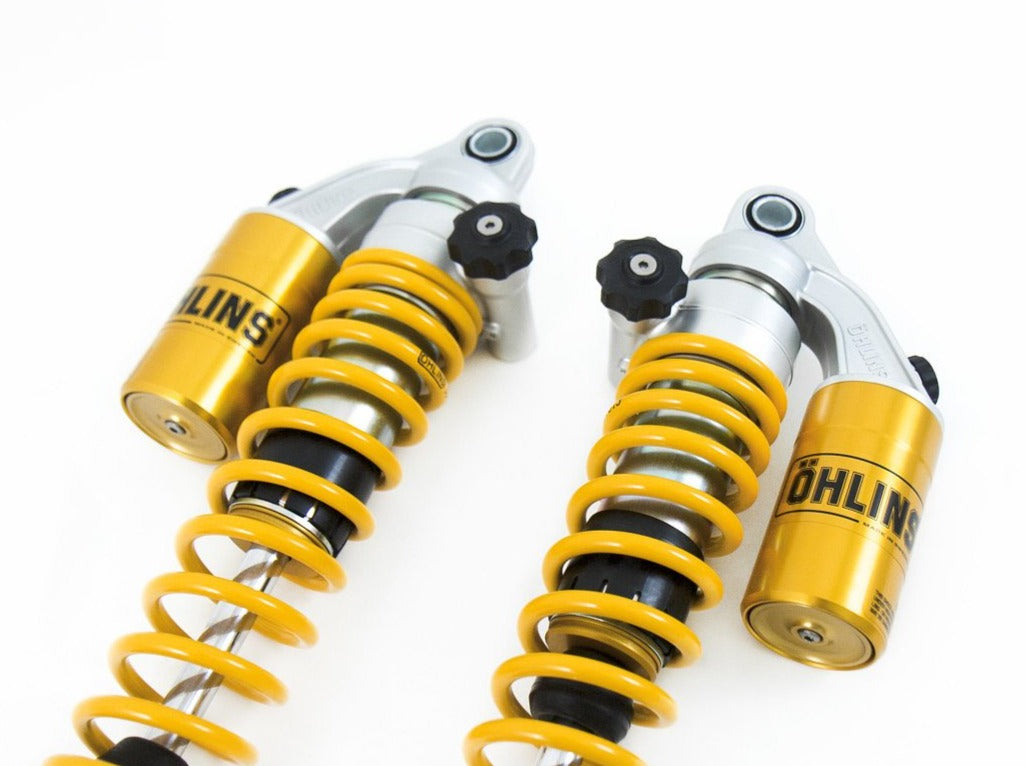

DU907 - OHLINS Ducati SportClassic / GT1000 Shock Absorber (STX 36 Twin)

STX 36 Twin shock by Ohlins for Ducati SportClassic 1000 / GT1000

Developed for bikes with twin shock absorbers, the Ohlins STX 36 is a classic monotube design, featuring all the classical Ohlins qualities delivering top notch performance for your street bike. Available in emulsion, piggyback or hose versions, depending on application, it can also be specified with a number of different damping adjustment options with or without length adjustment. Suitable for any application from cruisers to café racers, the STX 36 shocks are one of Ohlins most successful designs of all times.

📜 Owner's manual

🛠 Instructions for installation

Length:	378 mm
Stroke:	94 mm
Rate N/mm:	prog.16-26 N/mm
Position:	rear
Mounted spring:	60480-12
Spring series:	60480-xx
Packaging unit:	pair

Notes:

yellow springs (optional black springs available)

Type Code: S36PR1C1L

S: Single tube

36: Piston diameter: 36 mm

P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.

L: Adjustable length.

APPLICATION:

Ducati SPORTCLASSIC GT 1000 (2006 – 2010)

Ducati SPORTCLASSIC 1000 (2006 – 2010)
