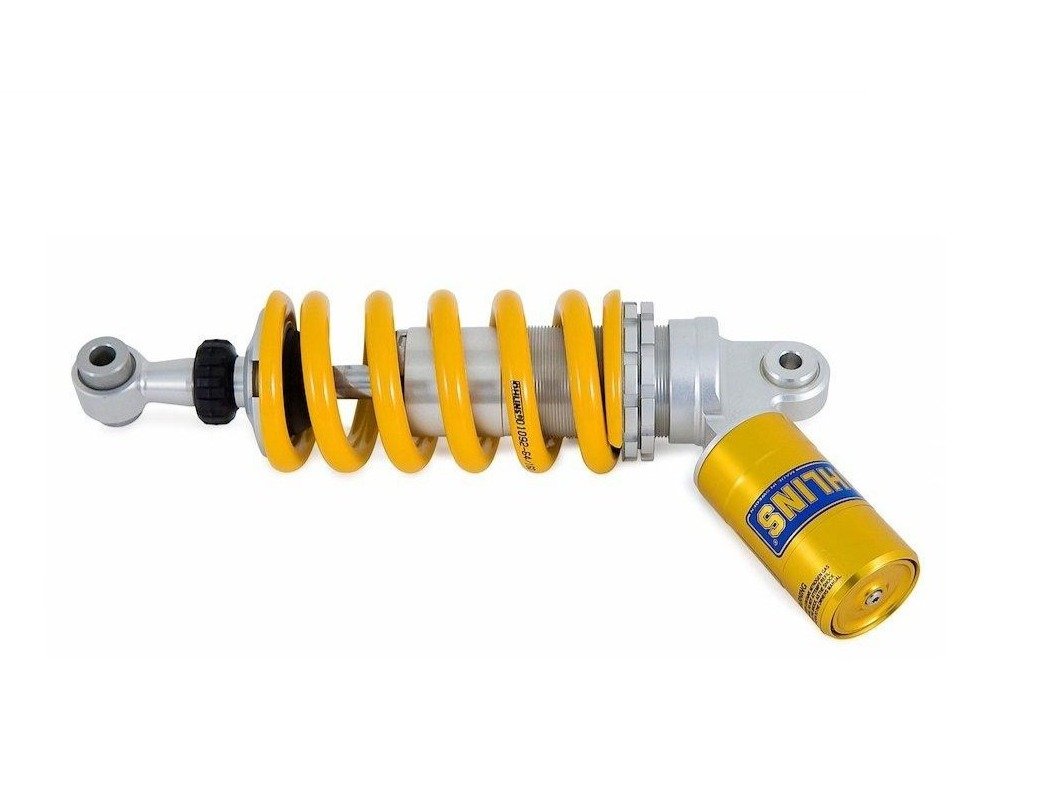

DU509 - OHLINS Ducati Scrambler Desert Sled Shock Absorber (STX 46 Street)

STX 46 Street shock absorber by Ohlins for Ducati Scrambler 800 Desert Sled

Ohlins well proven STX 46 Street series is the perfect upgrade for sportive street bikes. This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston. Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.

📜 Owner's manual

🛠 Instructions for installation

Length:	335 mm
Stroke:	81 mm
Position:	rear
Mounted spring:	01096-34

Fork 43 traditional - GOLD color. Plates and mounting kit included.

Type Code: S46PR1C1

S: Single tube

46: Piston diameter: 46 mm

P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

C1:

Adjustable compression damping. Adjuster wheel or slot on the reservoir

APPLICATION:

Ducati SCRAMBLER 800 Desert Sled (2017 – 2018)
