DU468 - OHLINS Ducati Panigale V4 (2018+) Shock Absorber TTX GP (Road & Track)
DU468 - OHLINS Ducati Panigale V4 (2018+) Shock Absorber TTX GP (Road & Track)
TTX GP shock absorber by Ohlins for Ducati Panigale V4 / V4S / V4R.
Based on your bike’s performance, its price and available mounting space we have designed a shock that we think suits it, both when it comes to price and performance.
We start by choosing a type which we tailor-make for your specific bike. The basic setup, the design of the shim stacks and the calibration of the adjusters, is tested both on road and track. They are the results of true tests with your bike and no guesswork!
Ohlins manufactures more than 300 different shock absorber models, each model is tailor-made for one specific bike. The concept of all Ohlins products is not a secret, it is precision. Precision provides superior control of the damping force and the key to success.
- Twin tube technology
- Rebound and compression adjustment straight from MotoGP
- Adjustment needles with different flow restriction behavior to improve chassis feedback
- Wider and more precise adjustment range
- Completely separated functions for rebound and compression damping
- New valves – better performance
- New piston and piston band – better performance and less wear

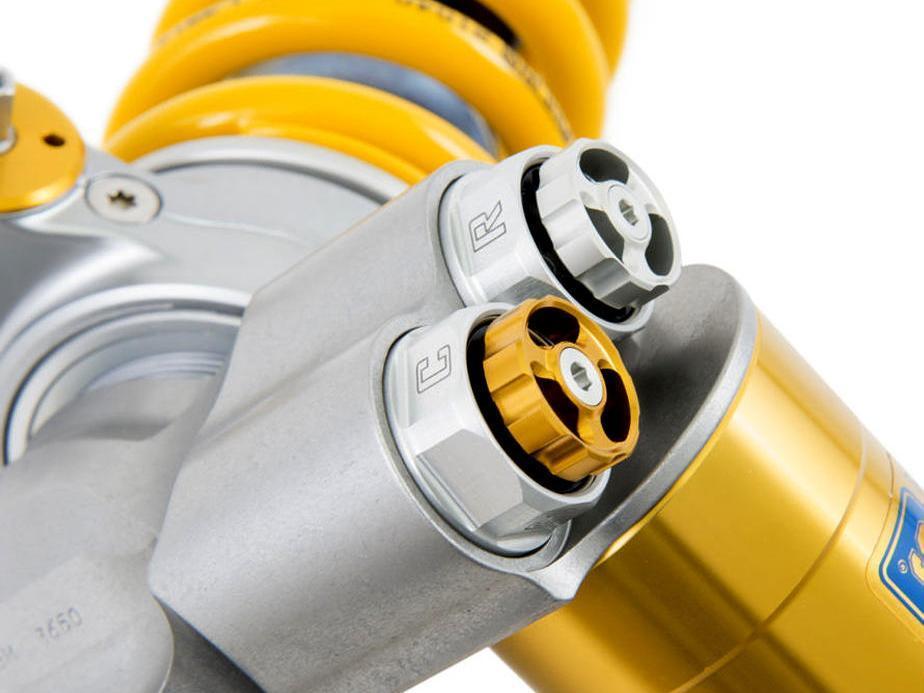

- New adjuster knobs – easier adjustment by hand but still adjustable with hexagon tool
- New top out spring
- New decals
- Type code: T36PR1C1LS
🏁 MotoGP approved
🛠 Instructions for installation
Technical data:
Length: | 310+4/-2 mm |
---|---|
Stroke: | 63 mm |
Rate N/mm: | 95 N/mm |
Position: | rear |
Mounted spring: | 21040-31 |
Packaging unit: | pieces |
APPLICATION:
Ducati PANIGALE V4 (2018 – 2022)
Ducati PANIGALE V4R (2019 – 2020)
For V4R: adjust shock absorber length to 312 mm by turning the end eye 2 full turns out. See Ohlins Owner’s Manual also.
Ducati PANIGALE V4S (2018 – 2022)
For Racing use only, may cause fault code in display
Ducati PANIGALE V4S Corse (2019 – 2020)
For Racing use only, may cause fault code in display
Ducati PANIGALE V4 Speciale (2018 – 2020)
