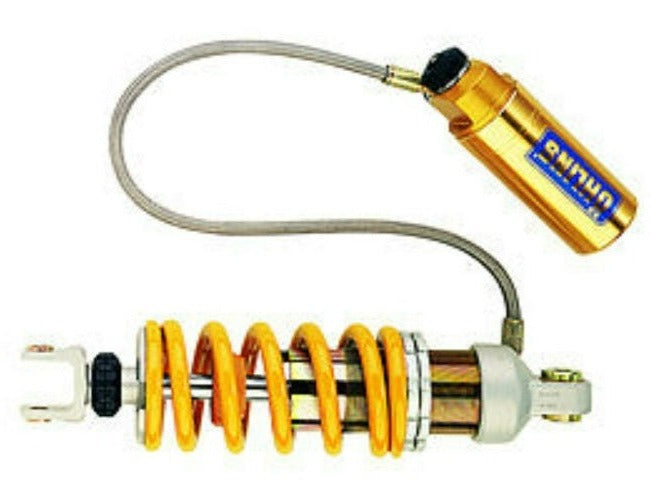

BM636 - OHLINS BMW G650X Challenge (07/09) Rear Shock Absorber

Rear shock absorber by Ohlins for BMW G650X Challenge.

The classic monotube design of the Ohlins STX 46 shock absorber is a major upgrade to most bikes in the adventure segment. The design is well proven, features a large 46 mm piston delivering reliable performance in all possible environments. Available in a wide range of configurations, with piggyback or hose mounted reservoir and with or without spring preload adjuster, the STX 46 can be made to fit in virtually any mounting space no matter what the constraints are. The STX 46 is available for most major models in the adventure segment.

📜 Owner's manual

🛠 Instructions for installation

Type Code: S46HR1C1

S: Single tube

46: Piston diameter: 46 mm

P: Monotube high pressure gas type of shock absorber with hose mounted external reservoir.

R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.

APPLICATION:
