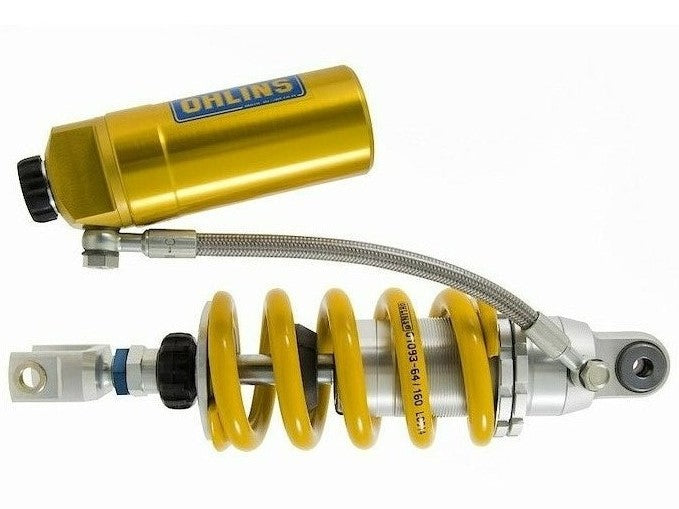

AP660 - OHLINS Aprilia RS 660 / Tuono 660 (2020+) Rear Shock Absorber

Rear shock absorber by Ohlins for Aprilia RS 660 / Tuono 660.

• Single tube
• Piston diameter: 46 mm
• Monotube high pressure gas type of shock absorber with hose mounted external reservoir
• Adjustable rebound damping on single tube shocks / adjuster wheel above the end eye
• Adjustable compression damping / adjuster wheel or slot on the reservoir
• Adjustable length
• Type code: S46HR1C1L

Based on your bike’s performance, its price and available mounting space we have designed a shock that we think suits it, both when it comes to price and performance. We start by choosing a type which we tailor-make for your specific bike. The basic setup, the design of the shim stacks and the calibration of the adjusters, is tested both on road and track. They are the results of true tests with your bike and no guesswork! Ohlins manufactures more than 300 different shock absorber models, each model is tailor-made for one specific bike. The concept of all Ohlins products is not a secret, it is precision. Precision provides superior control of the damping force and the key to our success.

Ohlins shock absorbers are an integral part of motorsport history in the past, the present and the future. Today, the company enjoys a major market presence in terms of high performance and top quality suspension products for motorcycles, cars and mountain bikes.

📜 Owner's manual

🛠 Instructions for installation

Technical data:

• Length: 309 +0,5/-5,5 mm
• Stroke: 51 mm
• Rate: 160 N/mm
• Position: rear
• Mounted spring: 01093-64
• Packaging unit: pieces

APPLICATION:

Aprilia RS 660 (2020 – )

Aprilia TUONO 660 (2021 – )
